Specifications

1.Three side sealing and stand up
2.Automatic
3.PLC and servo
4.High speed and high quality
5.Low price

Bag making machine

Features

1.Machine type:Three side sealing bag making machine

Specification

2.Three servo motor with industrial control computer(Taiwan)

3.Main drive: AC motor with inverter (Taiwan)

4.Temp. control: 24 stages

5.Material type: Laminated film like BOPP.COPP.PET.PVC.NYLON, multi-layer extrusion film. Al. plated film, Paper-    Plastic laminated web

6.Working pace: 160 t/min

7.Unwind line speed: ≤35 m/min

8.Bag size: Max. Length: 320mm,(multiple infeed)

9.Max. Width: 600mm

10.Material Max.size Φ600mm×1240mm(dia.×width)

11.Web Position Precision: less than ±0.5mm

12.Heat sealing knife: Vertical: 5 groups, Horizontal: 5 groups, Cooling: 2 groups
13.Zipper: 2 groups  cooling: 2 groups

14.Temp control electric heating block 24 pcs

15.Temp. setting range: 0~300

16.Power consumption: 65kw

17.Machine size: 13000x1580x1800mm(L x W x H)

18.Machine weight ~6500KG

19.Machine color Black machine body, ivory cover

20.Control system Bag making control system

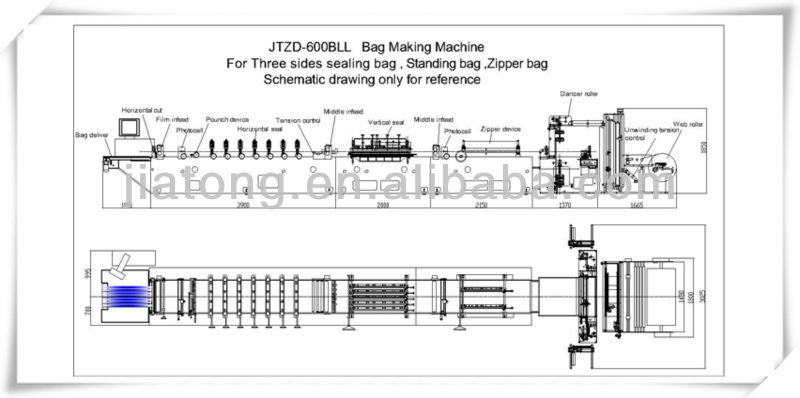

 Technical Drawing

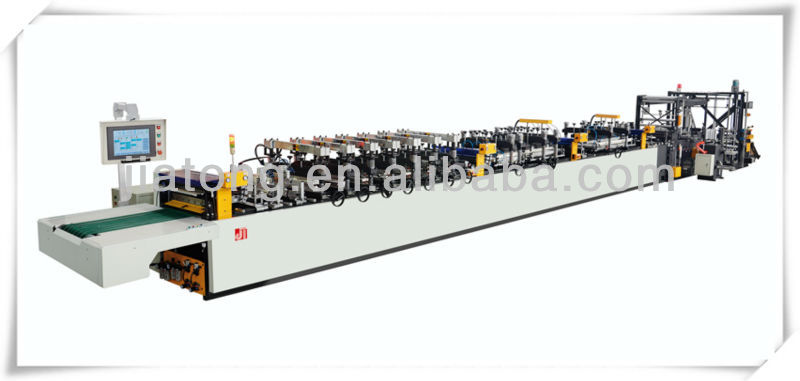

Machine sample figure

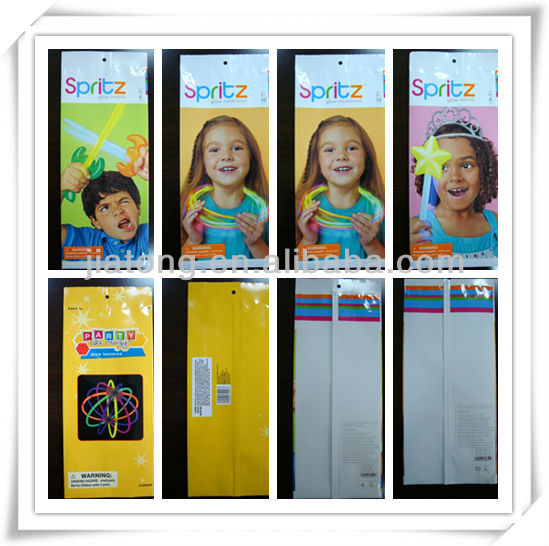

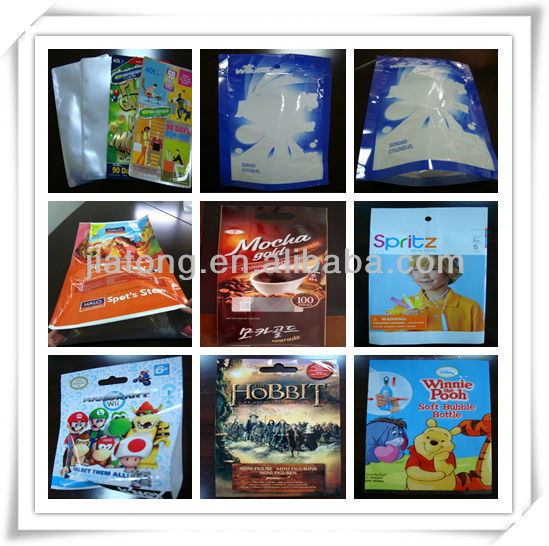

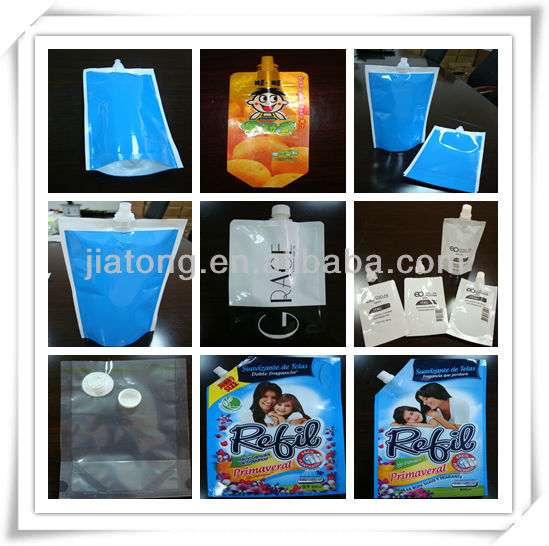

Samples

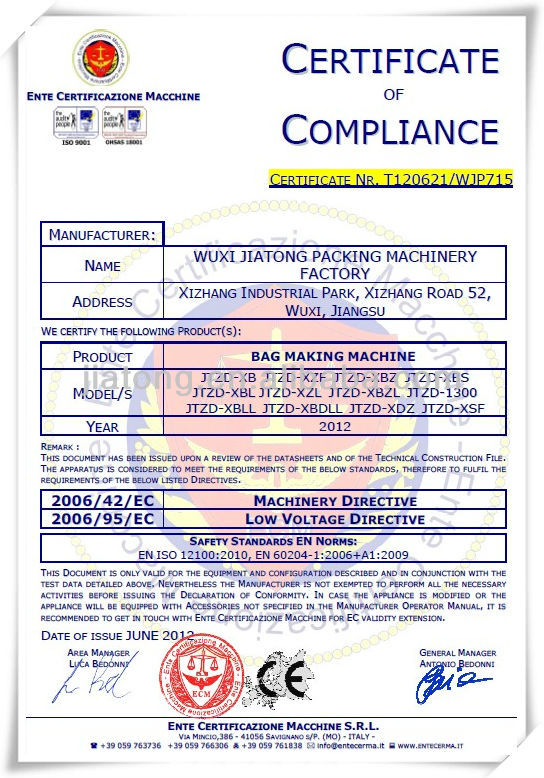

CE Certificate
