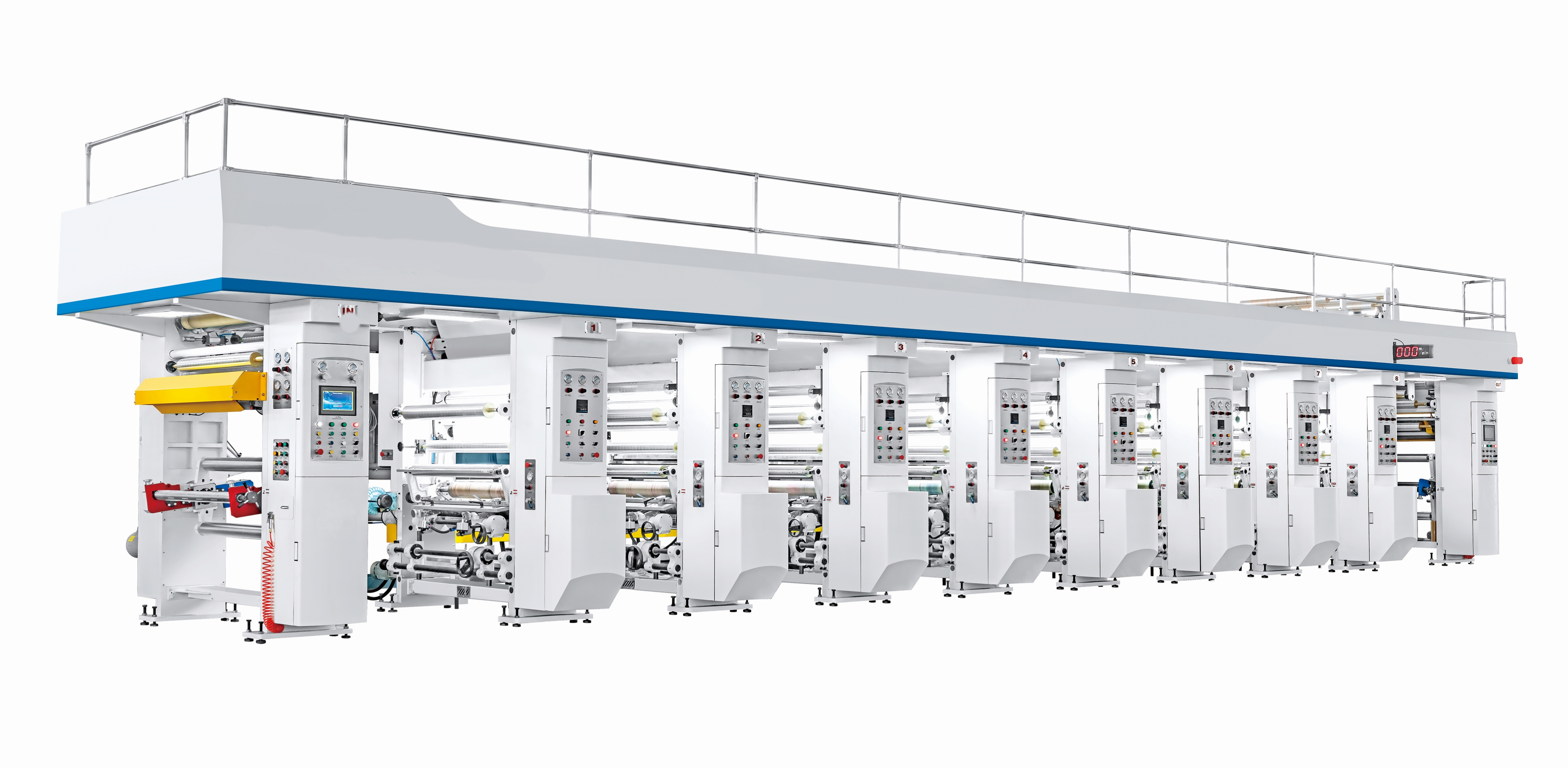

BOPP

12μm

60μm

PET

10μm

60μm

BOPA

15μm

60μm

LDPE

35μm

100μm

PE

40μm

100μm

设备流向

Print flow direction

从左向右

from left to right

三项五线制

Three-phase five lines system

设备重量

Machine Weight

约45T

Approximately  50T

设备外形尺寸

Machine size

19500mm×4300mm×3680mm

最高机械速度

Max mechanical speed

260m/min

最高印刷速度

Max printing speed

240m/min（版径≥Φ170）

240m/min(plate diameter≥φ170)

印刷色组

Printing color

8

印刷幅宽

Printing width

1050mm

导辊面1100mm

Guide roller1100mm

设备外观

Equipment appearance

颜色可选

Color is optional

装版方式

Method of installing plate

无轴气顶

Shaftless air supporting

顶版轴

Plate cylinder shaft

Φ78mm；跳动＜0.02mm(jerk value＜0.02mm);42CrMo磨具钢(mould steel)

色组中心距

Center distance of color unit

1.6m

加热方式

Type of heating

电加热

Electrical heating

收放卷结构

Unwinding and rewinding structure

独立式

Independent

装料方式

Loading material method

气顶气胀轴

Air support and expansion shaft

放卷最大直径

Max unwinding diameter

Φ800mm

收卷最大直径

Max rewinding diameter

Φ800mm

收、放料用纸心

Paper core

 φ76mm×φ92mm(3”)

纵向套印误差

Vertical registration deviation

≤±0.1mm 自动套印跟踪

Automatic overprint tracking

横向套印误差

Horizontal registration deviation

≤±0.1mm 自动对准

Automatic overprint tracking

张力范围

Tension control range

3～25kgf

牵引张力精度

Traction tension accuracy

±0.3kgf

进出料牵引辊

traction roller

Φ160mm

压印力

Force of impression

500kgf

气压要求

Air pressure requirements

≥0.8(Mpa)

压印辊硬度

Embossing roller hardness

邵尔（A）70°～75°

Shore（A）70°～75

压印胶辊

Embossing rubber roll

连轴式Φ130mm

Coupled shaftΦ130mm

顶版宽度

Top plate width

1000mm-1300mm

印版直径

Printing plate diameter

φ120mm～φ300mm

印版周范围

Printing plate circumference scope

377mm～942mm

递墨辊

Transfer ink roller

φ100mm

刮刀移动控制

Doctor blade move control

独立电机驱动整体变频控制

Inverter control of Independent motor drive

刮刀窜动

Doctor blade move range

±5mm

烘箱最高温度

Highest temperature of oven

Max.80℃（室温20℃）

Max.80℃（room temperature -20℃）

烘箱内料长

The material length in the oven

1-7色1.7m;第8色2.0m

1700mm(1-7unit),the eight color is 2000mm

烘箱结构

Oven structure

新型低残留水性墨烘箱

New and low residual water ink oven

烘箱风速

Oven wind speed

5～35m/s

烘箱喷嘴

Oven nozzle

1-7色10个；第8色12个

10(from 1-7color),the last one is 12

热风回风利用率

Utilization rate of hot and return air

2～50%

加热功率

Electrical heating power

27KW/组；最后1色36KW

27KW/group;the last one 36KW

温度控制精度

Temp control accuracy

±1℃

最大进风量

Maximum air volume

1-7色4500m³；第8色5000m³

from 1-7color is 4500m³,the last one 5000m³

风机全压

Fan pressure

2200Pa

风机功率

Fan power

1-7色3KW，第8色4KW

from 1-7color is 3KW,the last one 4KW

底部排风

Bottom exhaust air

24处

24 sides

水冷装置

Water cooling device

φ150mm

冷却辊用水量

Water consumption of cooling roller

0.9T/H/色

0.9T/H/colour

冷风装置

Cold air device

8组

8units

铸铁标号

Cast  iron  numbe

HT250二次退火

HT250second annealing

版堵尺寸

Clogging size

φ100mm；斜度(inclination )10°；键(key)5mm×10mm;

跳动(jerk value)＜0.02mm

可定做

customized

翻印装置(选配)

Reprint device(optional)

气悬浮

air-suspending

可选其它方式

optional

收料压辊

Rewinding press roller

2套气动压辊，压辊压力逐步衰减

2 sets pneumatic press roller, and pressure of press roller gradually reducing
